RL Series

RL Series

Part no. NIX00600X-XXX (contact sales for options)

1U 19″ Rack Mount AoIP Monitoring Tool and Mixer

  • Compact 1RU design for portable and fly-away broadcast applications
  • Rapid bootup for fast deployment
  • Expandable confidence monitoring with mixing of up to 256 channels across 4 x network ports
  • High resolution screen with clear metering and quick source touch screen navigation
  • Separate Mic and AES inputs
  • AES output and headphone
  • Individual Dante, Ravenna/AES67, ST2110 and Milan AVB versions or mix formats in the same 1RU frame to monitor across different AoIP networks.

A 1U 19″ rack mounted AoIP monitoring and mixing unit.

Four base models are available the RL64, RL128, RL192 and RL256 with a total of 64, 128, 192 and 256 AoIP channels respectively.

Each unit can be configured at time of purchase to be Dante, Ravenna/AES67, ST2110 and Milan AVB.
Different AoIP formats can also be fitted into the same frame so different networks can be monitored from the same frame and operator position.

RL Series units allows two modes of operation a mixing mode which can mix up to 256 channels at 48 kHz (128 channels at 96 kHz) plus microphone input (via headphone connector) and AES input to create a 259 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.

The outputs of the LR bus are presented to the user via the inbuilt 4 mm x 9 mm full range speakers or via the 3.5 mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL Series Unit. The mix output is also routed to the AoIP output.

The RL Series units are operated and controlled via the large letterbox 6.6” diagonal (168 mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.

Optionally an iPad can be used to control the unit via the Nixer Remote App. Audio can be streamed and monitored via the remote iPad or via the RL Series internal speakers.

A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RL Series unit very quickly.

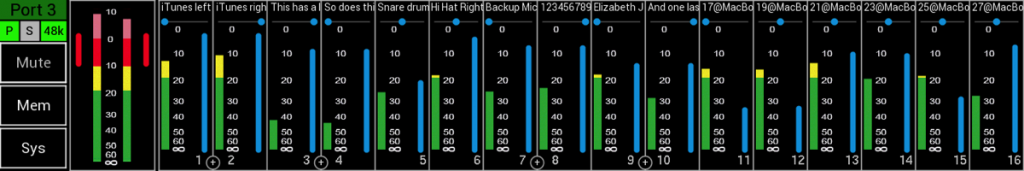

The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.

Firmware updates of the RL Series unit are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5 mm jack socket for the headphone output.

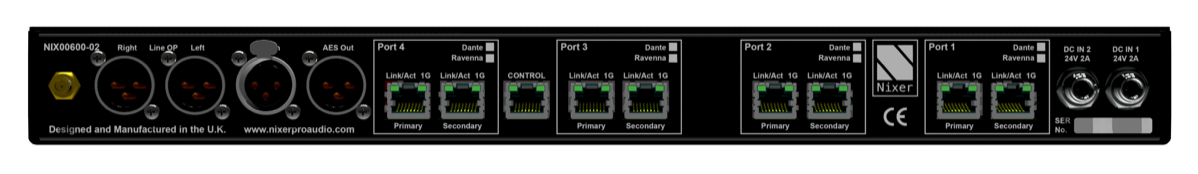

On the rear of the RL Series unit there are 4 x Primary and Secondary ports for up to 4 x AoIP inputs. 2 x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.

Additionally, there is an AES input via 3 pin female XLR connector

The RL Series unit can be powered via either of the two 2.5 mm DC input connectors requiring 24V @ 2A. These inputs also have a screw lock to prevent accidental unplugging. Using both inputs provides redundancy.

The NIX00629 is required to power the RL Series.

The optional NIX00710 Remote Control Adapter enables a web interface with remote metering over a standard web browser and connection to the Nixer Remote iPad App for remote monitoring and audio streaming.

For more information on the Nixer Remote App click here

To access and enable the Nixer Remote App on the RL Series the optional items below are required

NIX00710              Remote Control Adapter – enables NixNet control, Web interface with remote metering and connection to iPad App
NIX00602WiFI    WiFi Adapter and antenna

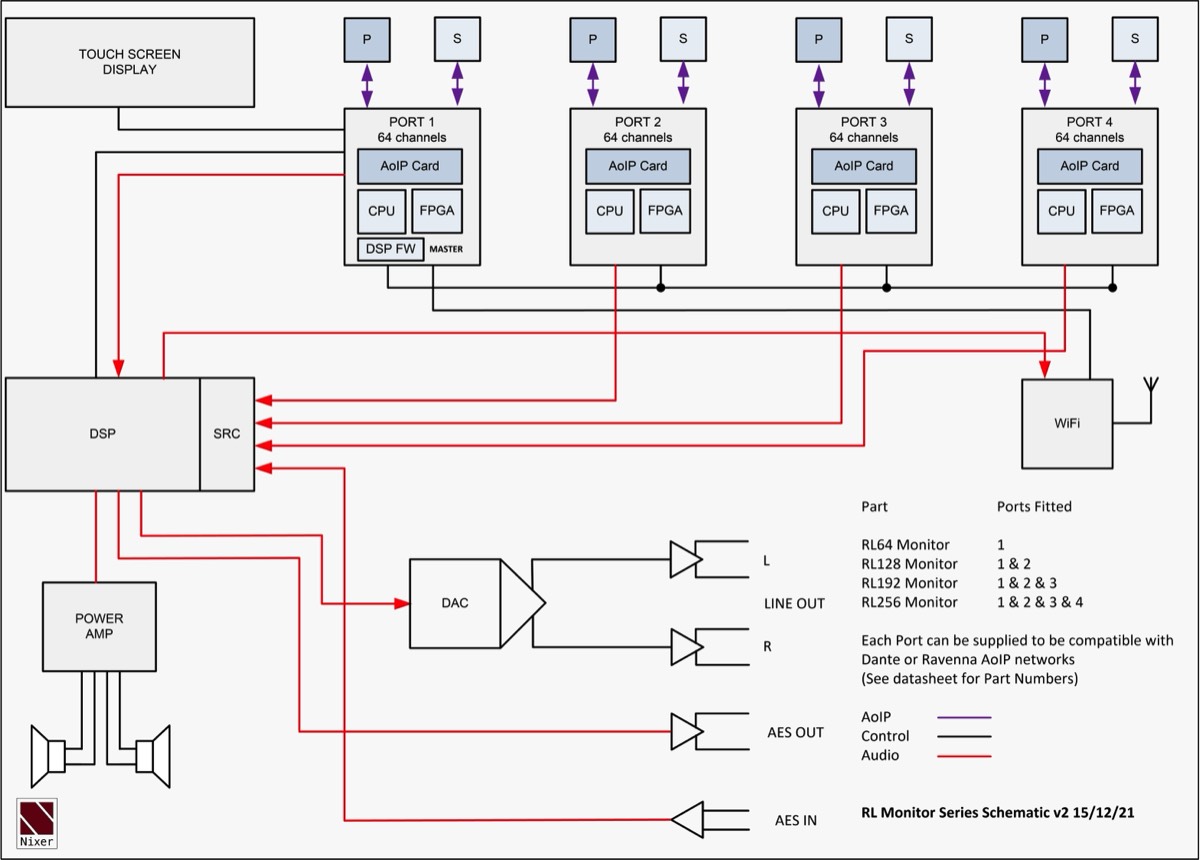

Nixer RL Series AoIP Specifications

Monitoring of up to 256 AoIP channels at 48 kHz (128 channels at 96 kHz).
Ability to create a mix of inputs (inc mic and AES in) into a Stereo mix. Supports any combination of Dante, Ravenna/AES67, ST2110 and Milan AVB formats in the available 4 Ports - specified at time of purchase.

  • AoIP Audio Monitor
  • 4 Pairs of AoIP Ports which can Dante, Ravenna or mixed
  • Dedicated Mix or Listen modes
  • Mix mode allows for Panning and Level control
  • Channels can be configured as Mono or Stereo
  • Main output has 3 band EQ and Limiter
  • Mic input via 3.5mm jack input
  • AES In and AES Out
  • 259 channel meters (16 displayed at a time)
  • High resolution meters switchable scale standards from EBU or SMPTE
  • Monitor Output via Headphone, Built-in speakers, Balanced Line Outputs or AES Out

Dante

  • Native Dante
  • AES67 compatible
  • SMPTE 2110 compatible
  • Fully compatible with New Dante Domain Manager – RL Dante options only


Ravenna

  • Native Ravenna
  • AES67 compatible
  • SMPTE 2110
  • NMOS-04 and -05 Support

Milan

  • Milan AVB compatible
    (Currently Primary network support only – contact Sales Office for current updates on redundant network operation)
  • 44.1kHz
  • 48kHz
  • 88.2kHz
  • 96kHz
  • 16bit
  • 24bit
  • 32bit
  • Up to 4x Dual 1Gbps RJ45
  • 1Gbps or 100Mbps operation (Ravenna supports 1Gb only)
  • User configurable for Switched or Redundant operation
  • Network configuration information available via menu
  • Please note any Milan ports only offer a Primary network connection – contact the Sales Office for current updates on redundant network operation
  • Internal 2W/channel amplifier feeding either
  • 2x small full range speakers or headphones
  • 3.5mm Headphone socket (with microphone input)
  • Headphone output can drive loads from 8ohm to 600ohm
  • 2x 3pin male XLR connectors
  • Fed from any input
  • 0dBFS = +21dBu maximum output into 600ohms
  • Output Mute relays
  • Stereo AES3 Input on 3pin female XLR connector
  • SRC converts from 44.1kHz, 48kHz or 96kHz to RL64 sample rate
  • AES3 routing to any output
  • Stereo AES3 output on 3pin male XLR connector
  • Fed from any input

USB port is also used for product firmware updates

  • 2x 2.5mm DC inputs socket for use with external 24V 2amp adaptor
  • Both power inputs can be active at the same time for redundancy
  • The NIX00629 is required to power the RL Series, two required for redundancy.
  • 6.6” (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution
  • LED backlight (adjustable brightness via software)
  • multi touch capacitive touch overlay with gesture support
  • Dimensions 494mm wide by 210mm deep by 44mm height
  • Weight 3.0kg
  • 19inch rack mounting ears can be removed for desktop use

RL Series – Pre Configured Units

RL64 Monitor
Order Code
NIX00600D-64                 RL64 Monitor – 64 channel Dante AoIP monitor and mixer
NIX00600R-64                 RL64 Monitor – 64 channel Ravenna AoIP monitor and mixer

RL128 Monitor
Order Code
NIX00600D-128               RL128 Monitor – 128 channel Dante AoIP monitor and mixer
NIX00600R-128               RL128 Monitor – 128 channel Ravenna AoIP monitor and mixer

RL192 Monitor
Order Code
NIX00600D-192               RL192 Monitor – 192 channel Dante AoIP monitor and mixer
NIX00600R-192               RL192 Monitor – 192 channel Ravenna AoIP monitor and mixer

RL256 Monitor
Order Code
NIX00600D-256              RL256 Monitor – 256 channel Dante AoIP monitor and mixer
NIX00600R-256               RL256 Monitor – 256 channel Ravenna AoIP monitor and mixer
