RLC64
RP64 EQ
- Compact 1RU design
- 66 x 68 AoIP patch bay
- Near instantaneous audio switching
- High resolution screen with clear metering and quick source touch screen navigation
- Memories for recall of different setup
- Available as either Dante or Ravenna at time of purchase.
RP64 CV2
- Compact 1RU design
- 66 x 68 AoIP patch bay
- Near instantaneous audio switching
- High resolution screen with clear metering and quick source touch screen navigation
- Memories for recall of different setup
- Available as either Dante or Ravenna at time of purchase.

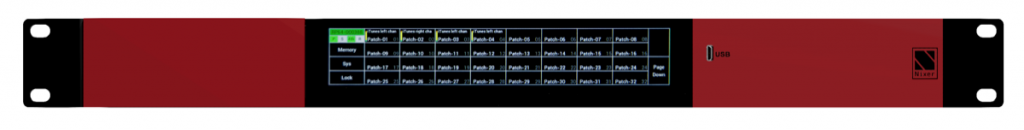

A 1U 19inch rack mounted AoIP patch bay
2 models are available either Dante or Ravenna
A 66 x 68 AoIP patch bay when running at 48kHz allows any input to be connected to any output or any input to multiple outputs.
Each input channel contains a 3 band EQ, Level control and Limiter
All of the features are easily and simply controlled via the large intuitive touchscreen interface.
Patches are configured and reconfigured easily by touching the respective switch on the touchscreen resulting in near instantaneous changeover of the audio
It is also possible to quickly recall different patch settings that have been saved to memory

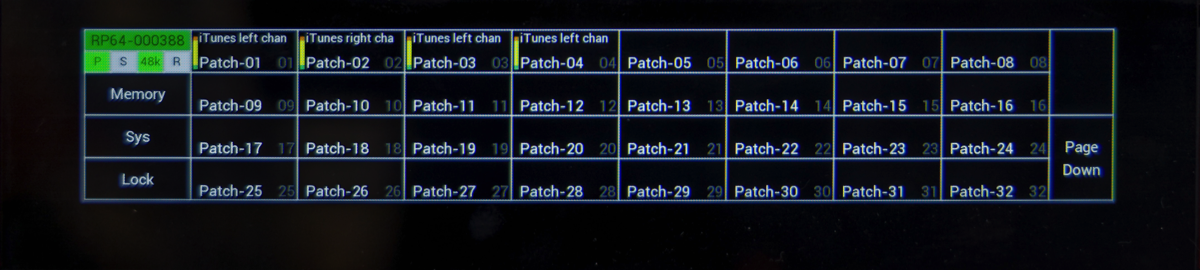

The RP64EQ is operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
Alternatively the RP64 CV2 does not have the LCD display and is designed for installs where the unit will be controlled remote via OSC
A simple and elegant menu system has been designed to be intuitive to navigate allowing the user to access all the features of the RP64 unit very quickly.
The high-resolution screen is easy to read presenting comprehensive metering, routing and status information to the user.
Firmware updates of the RP64 are achieved via a dedicated USB micro AB connector on the front panel.
On the rear of the RP64 unit there is a Primary and Secondary port for the AoIP input
The Control RJ45 allows the RP64 to remotely controlled via NixNet
The Remote RJ45 is a bespoke remote control port for additional accessories (note it is not compatible with ethernet)
Stereo Line Output on 3 pin male XLR connectors
AES In on 3 pin female XLR and AES out on 3 pin male XLR
The RP64 can be powered via PoE on the Primary port and/or via the 2.5mm DC input connectors requiring 24V @ 2A. The DC input also have a screw lock to prevent accidental unplugging. Using both the PoE and the DC inout provides redundancy.
The optional NIX00583 or the NIX00629 can be used to power the RS64
Nixer RP64 EQ AoIP Specifications
Patching of up to 66 inputs to 68 outputs with 3 band EQs and Limiters (34 inputs to 36 outputs at 96kHz)
- 66 x 68 channel patch matrix (34 x 36 at 96kHz)
- Patch inputs “one to one” to output
- Patch any input to any output
- Patch one input to many outputs
- Patch AES input to any output
- Patch any input to AES output
- Patch any input to the Line Output
- 64 input signal processors* – each channel has the following
- Three band EQ
- low shelf
- mid band parametric
- hi shelf
- Output level control
- Limiter
*When using the AES input the number of signal processors available is reduced to 62
- AES67 compatible
- SMPTE 2110 compatible
- Fully compatible with New Dante Domain Manager – Dante option only
- 44.1kHz
- 48kHz
- 88.2kHz
- 96kHz
- 16bit
- 24bit
- 32bit
- Dual 1Gbps RJ45
- 1Gbps or 100Mbps operation (Ravenna supports 1Gb only)
- User configurable for Switched or Redundant operation
- Network configuration information available via menu
- 2x 3pin male XLR connectors
- Fed from any input
- 0dBFS = +21dBu maximum output into 600ohms
- Output Mute relays
- Stereo AES3 Input on 3pin female XLR connector
- SRC converts from 44.1kHz, 48kHz or 96kHz to RP64 EQ sample rate
- AES3 routing to any output
- Stereo AES3 output on 3pin male XLR connector
- Fed from any input
- Single RJ45 100Mbs
- NixNet remote control of the product
- Single RJ45 – NOT ethernet
- Wired remote control option on RJ45 connector
- For use with optional hardware remote controllers
- RS485 balanced TX and RX pairs
- 5V feed to connected device (up to 200mA)
- Note: this connector is not compatible with standard ethernet connectors
USB port is also used for product firmware updates
- PoE (13W) on Primary RJ45 connector
- 2.5mm DC inputs socket for use with external 24V 2amp adaptor
- Both power inputs can be active at the same time for redundancy
- 6.6” (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution
- LED backlight (adjustable brightness via software)
- multi touch capacitive touch overlay with gesture support
- Dimensions 494mm wide by 120mm deep by 44mm height
- Weight 1.0kg
- 19inch rack mounting ears can be removed for desktop use
